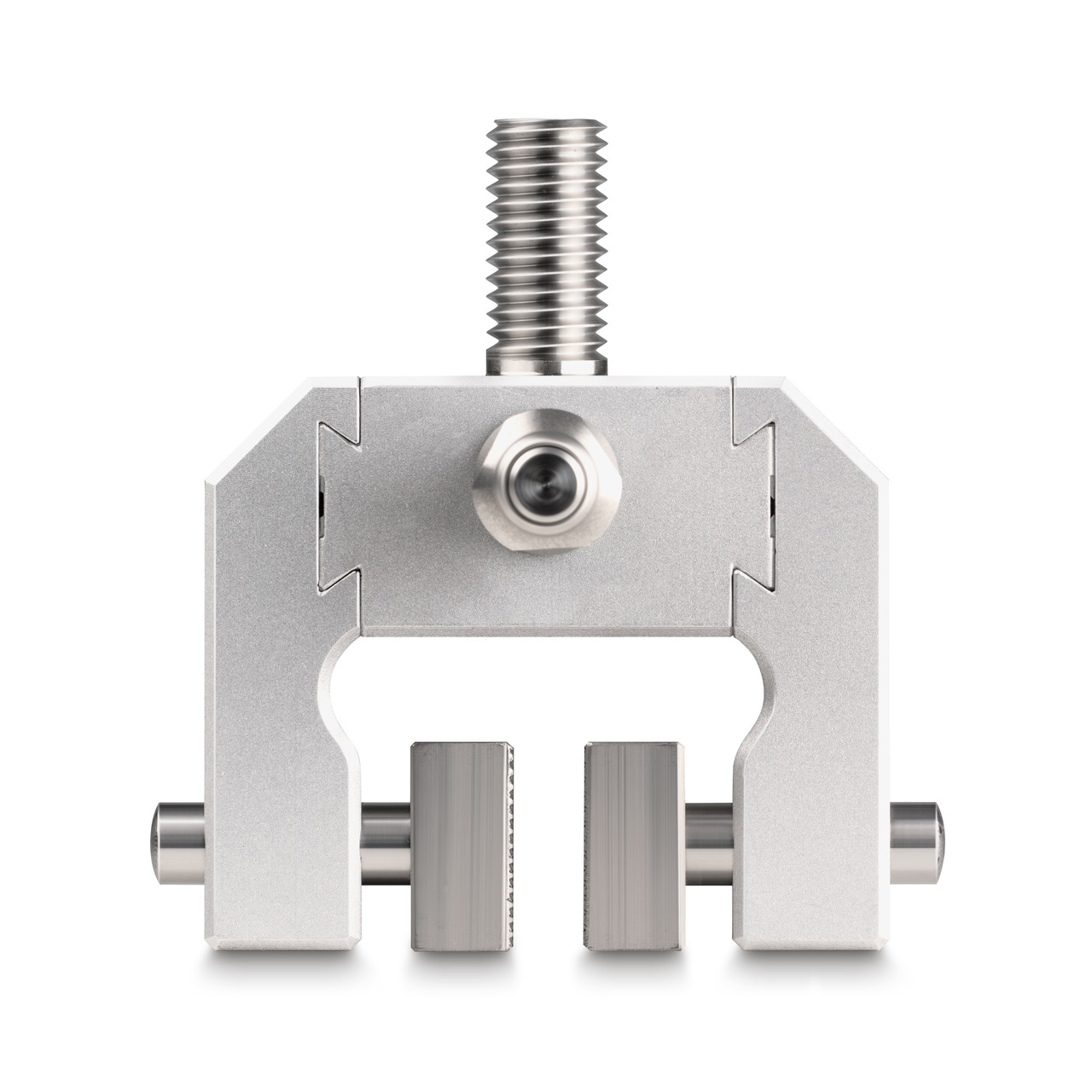

Schraubspannklemme Spannweite 0 bis 15 mm

KERN AE 2K

Productbeschrijving

---

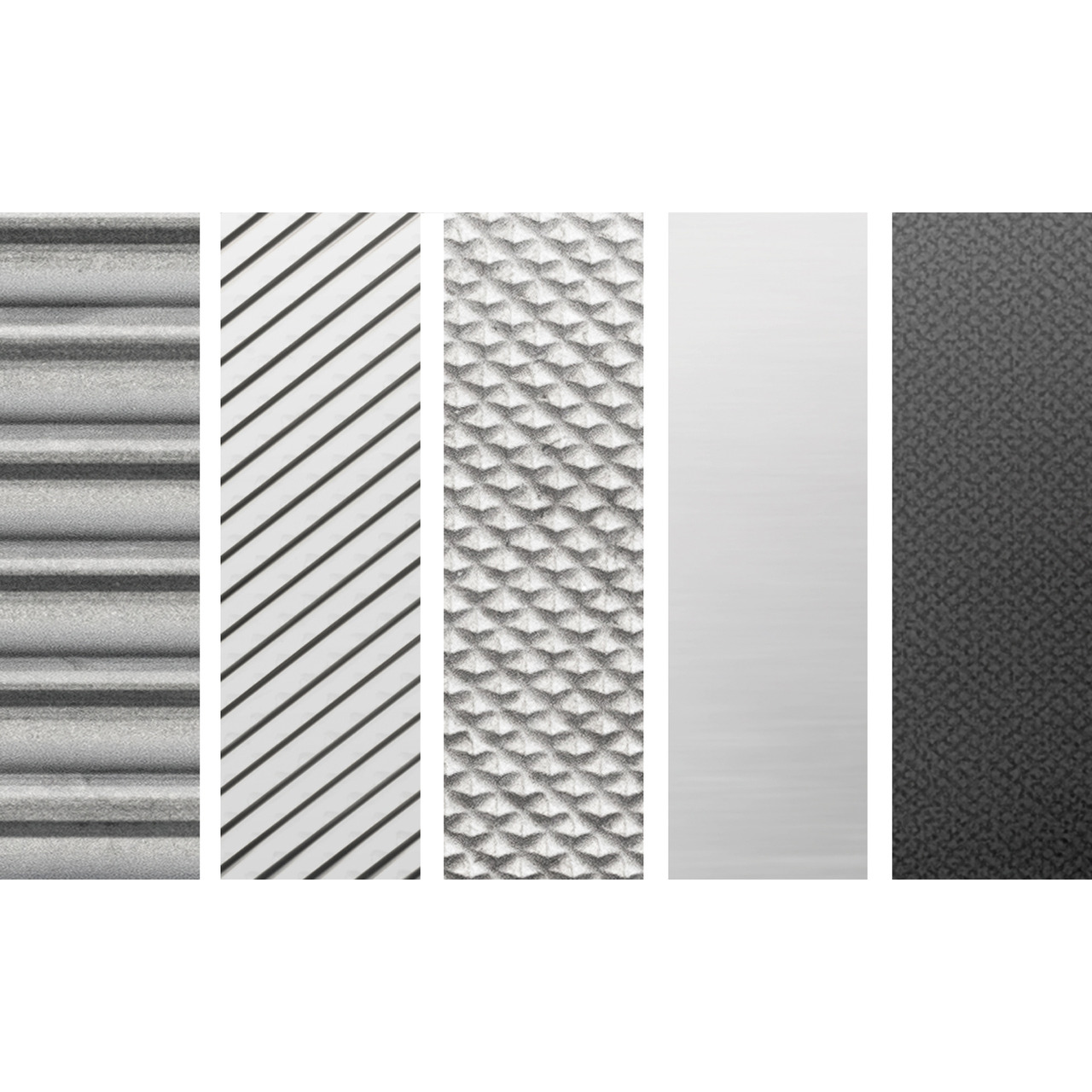

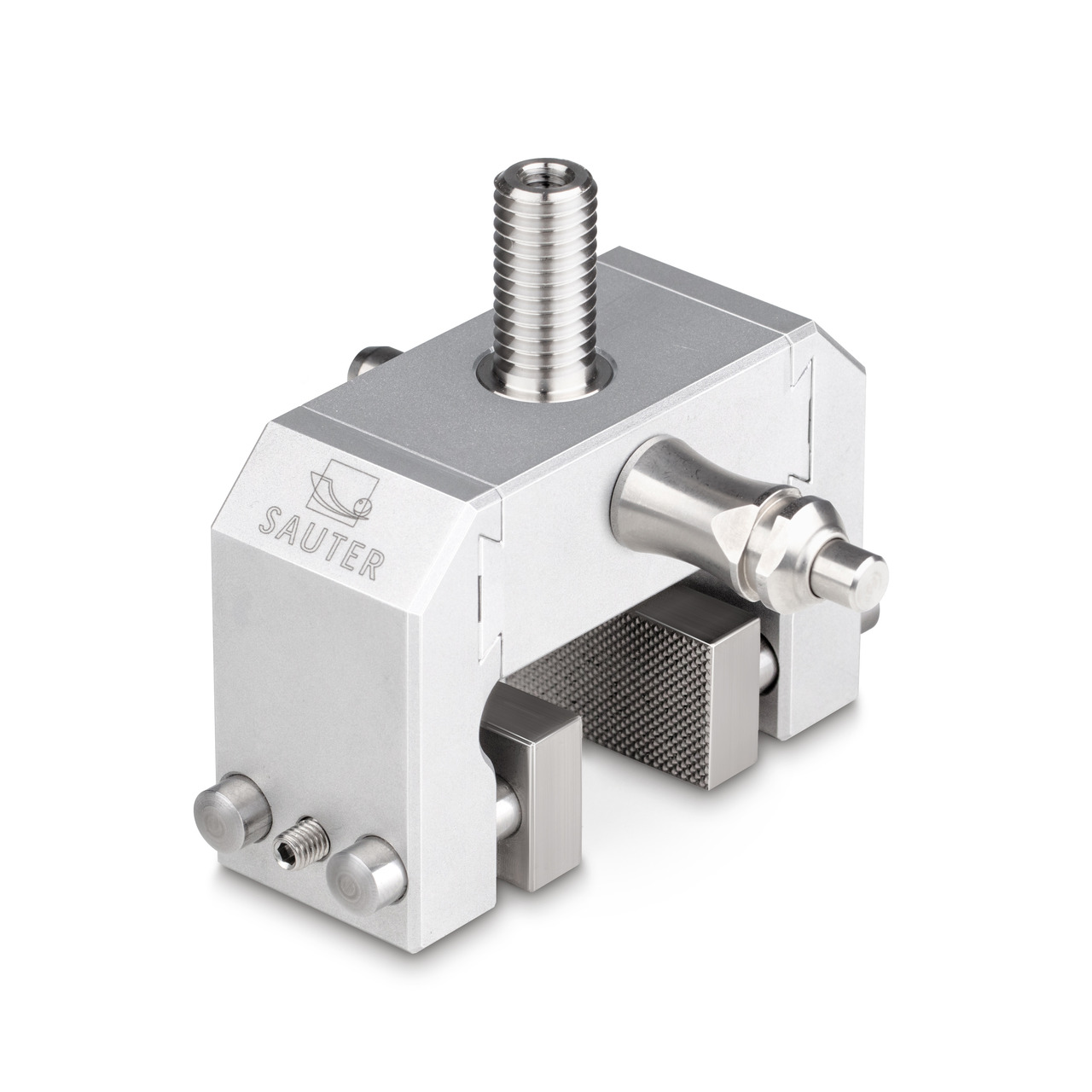

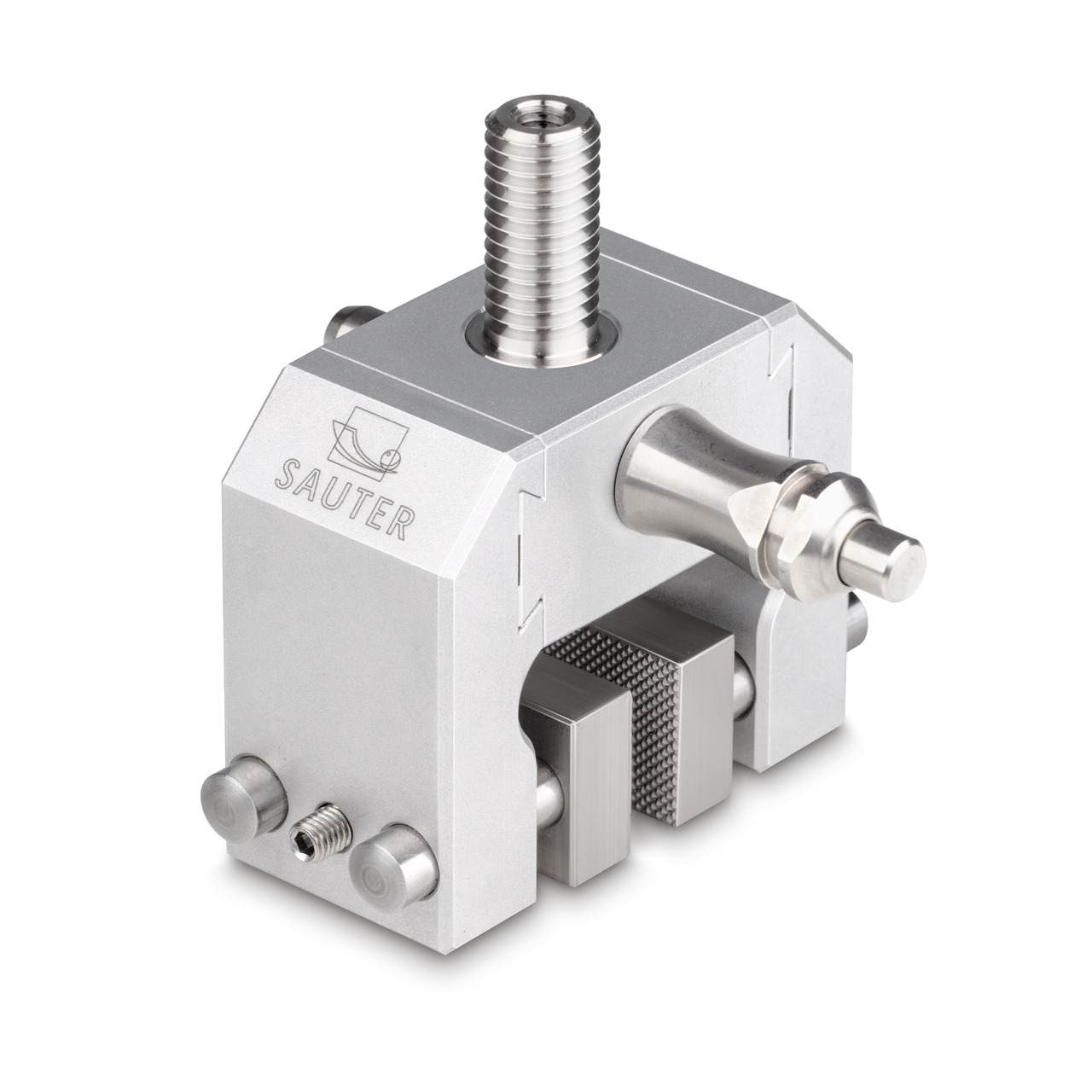

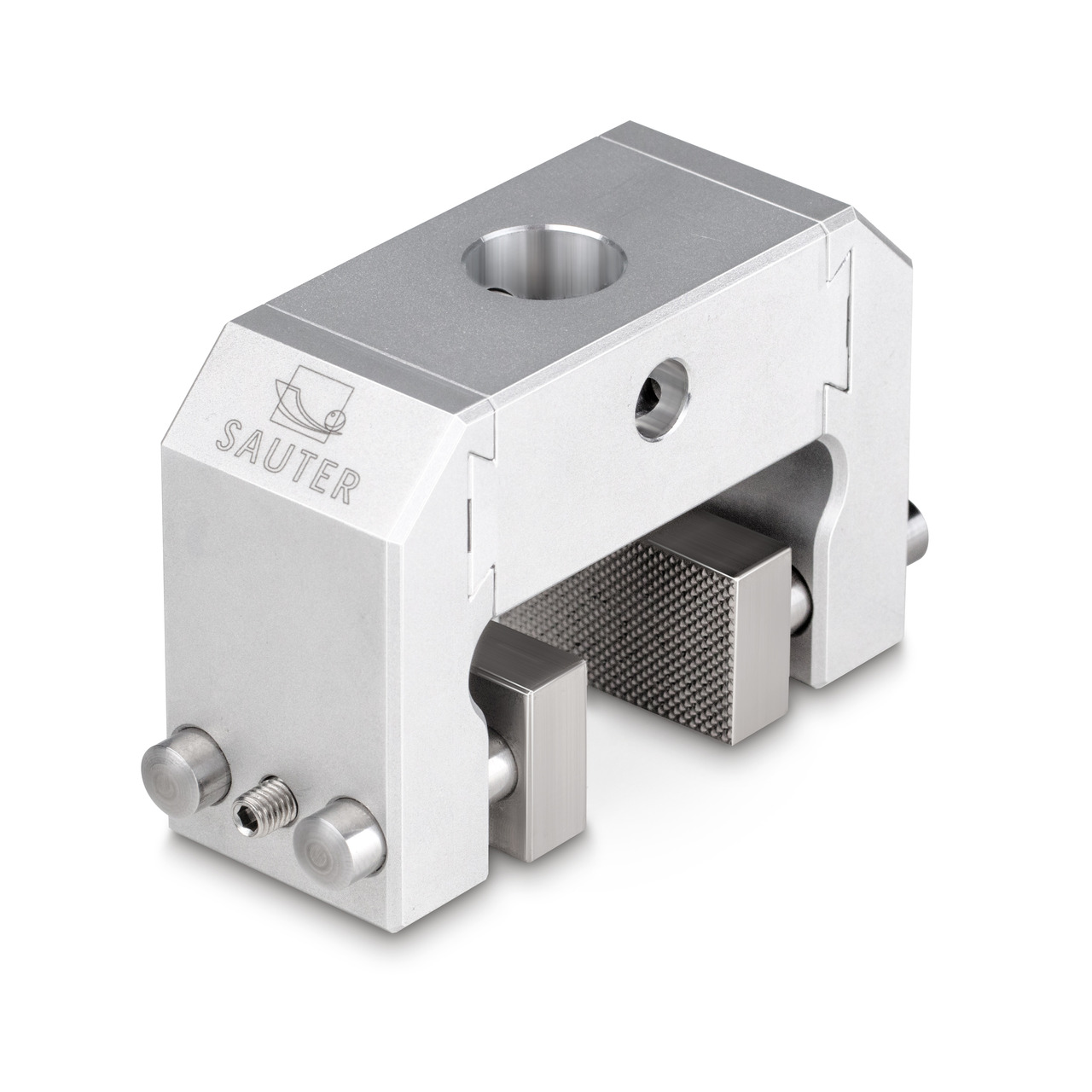

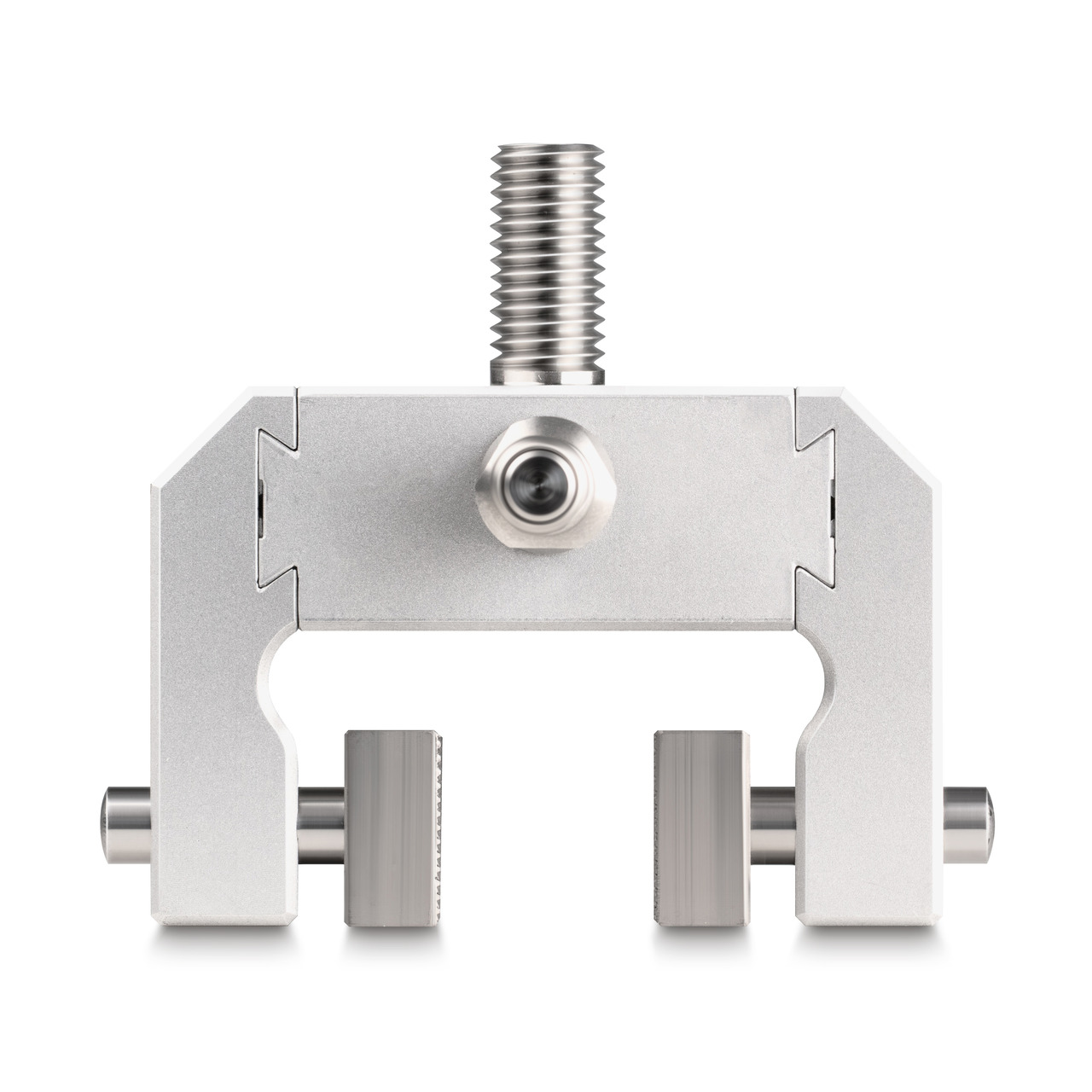

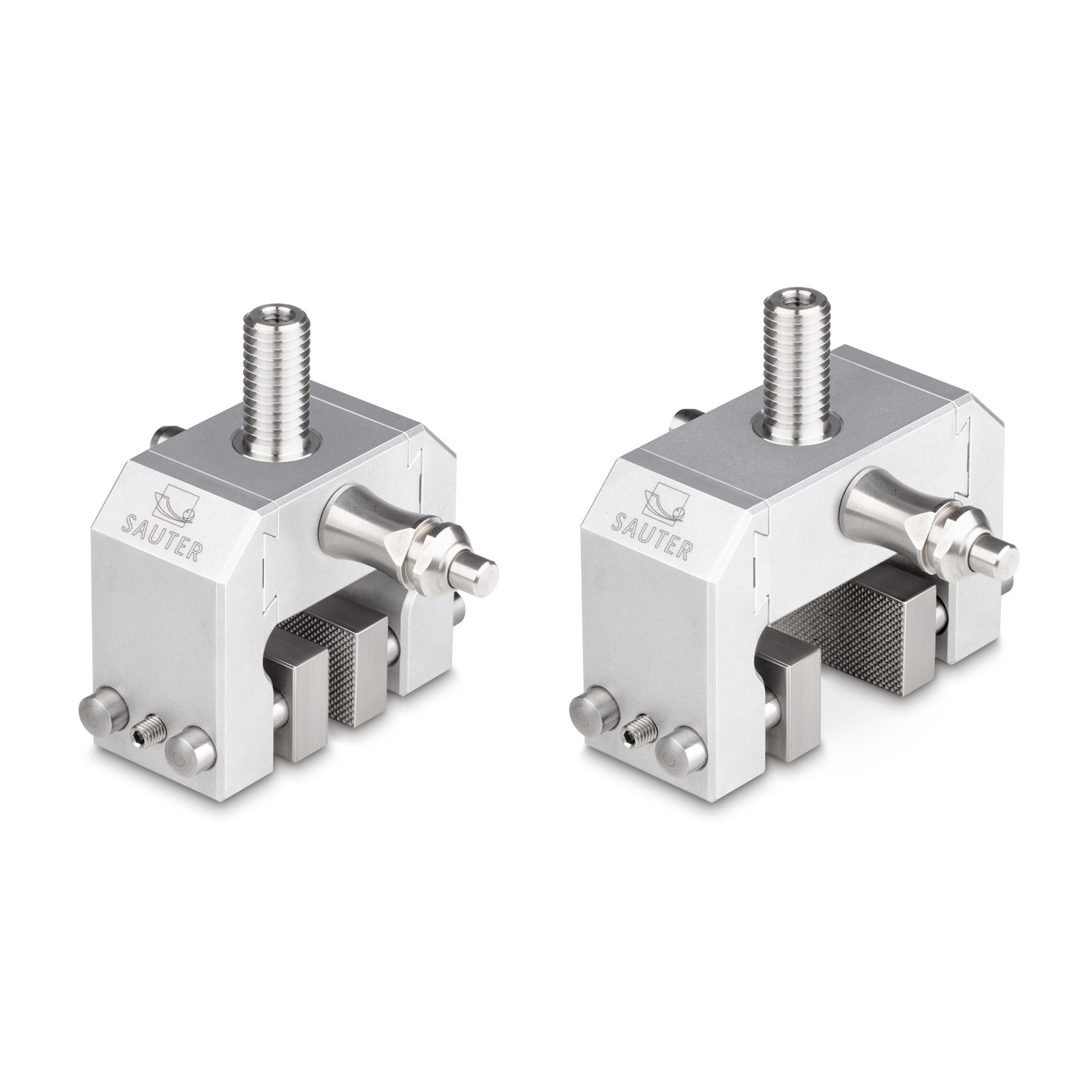

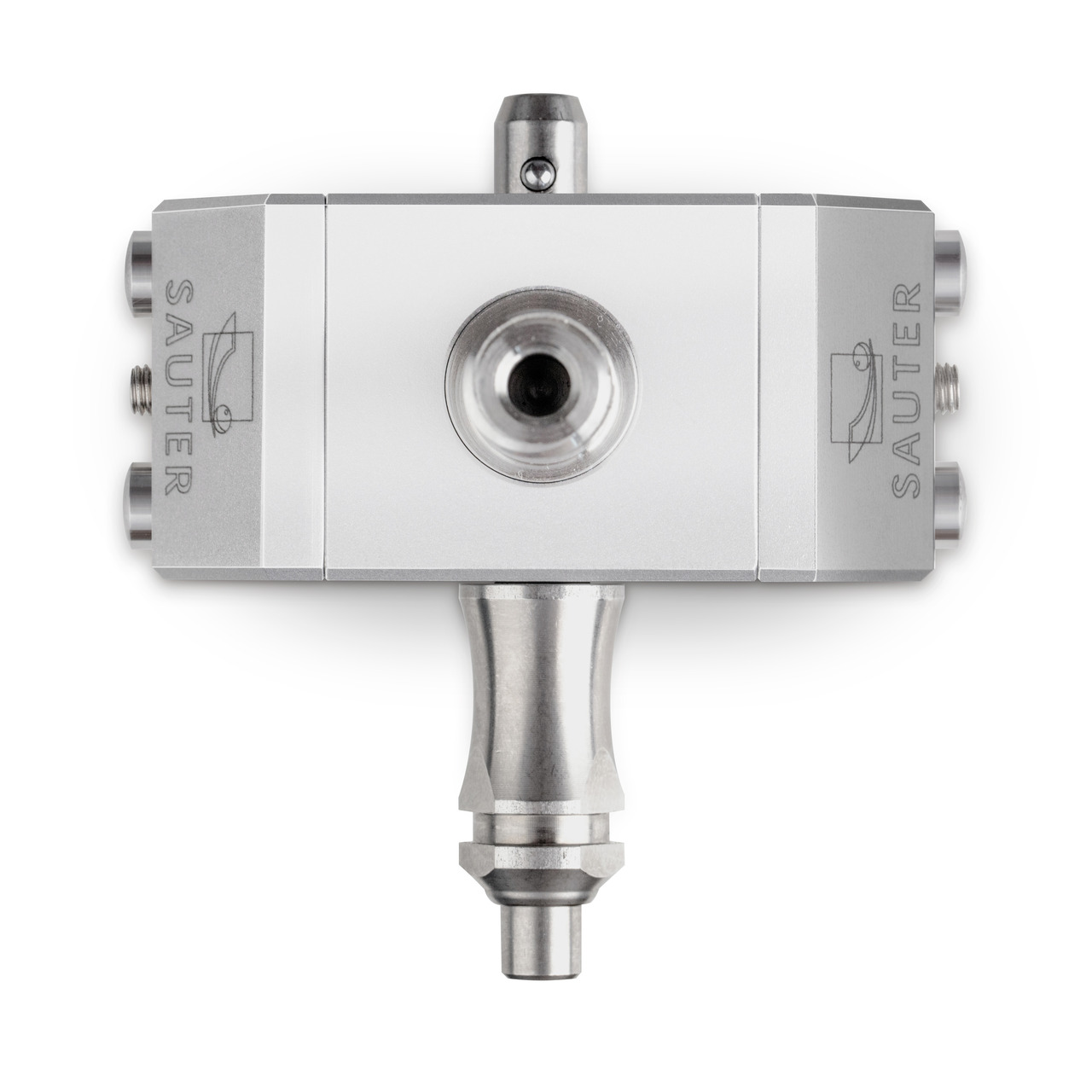

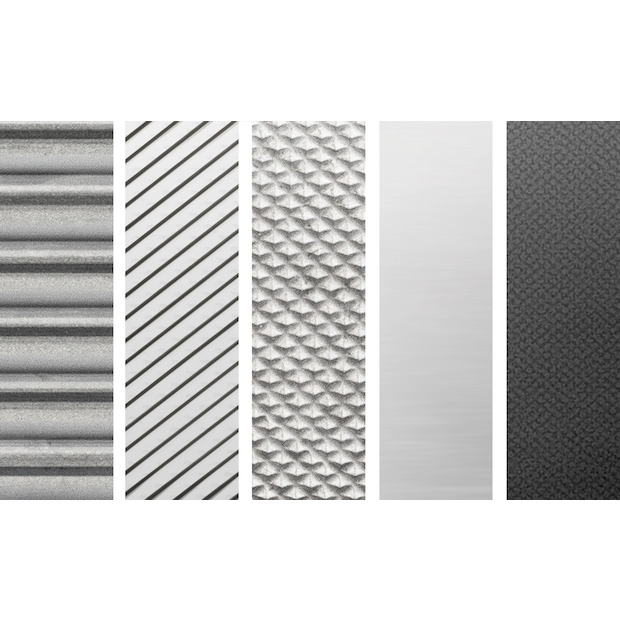

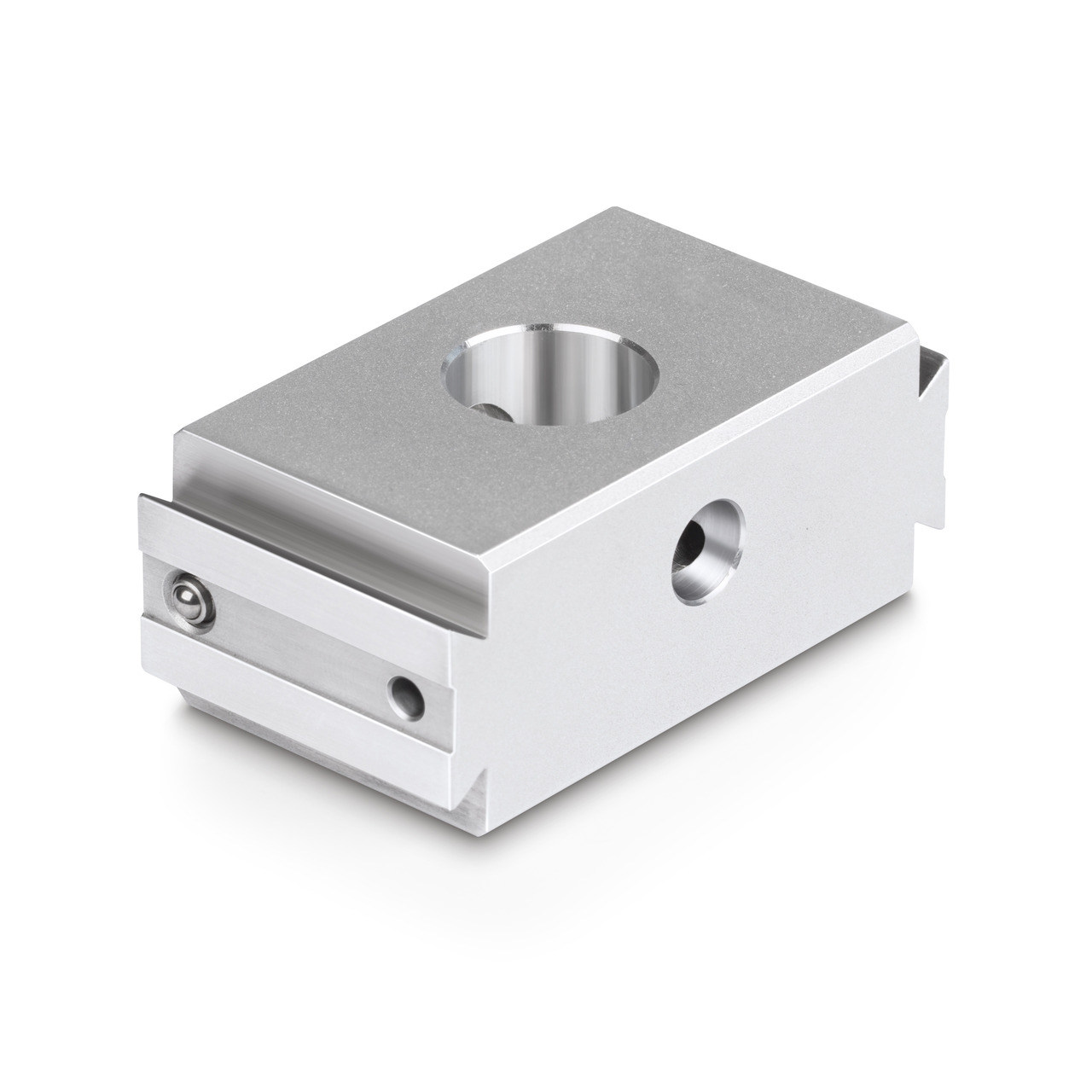

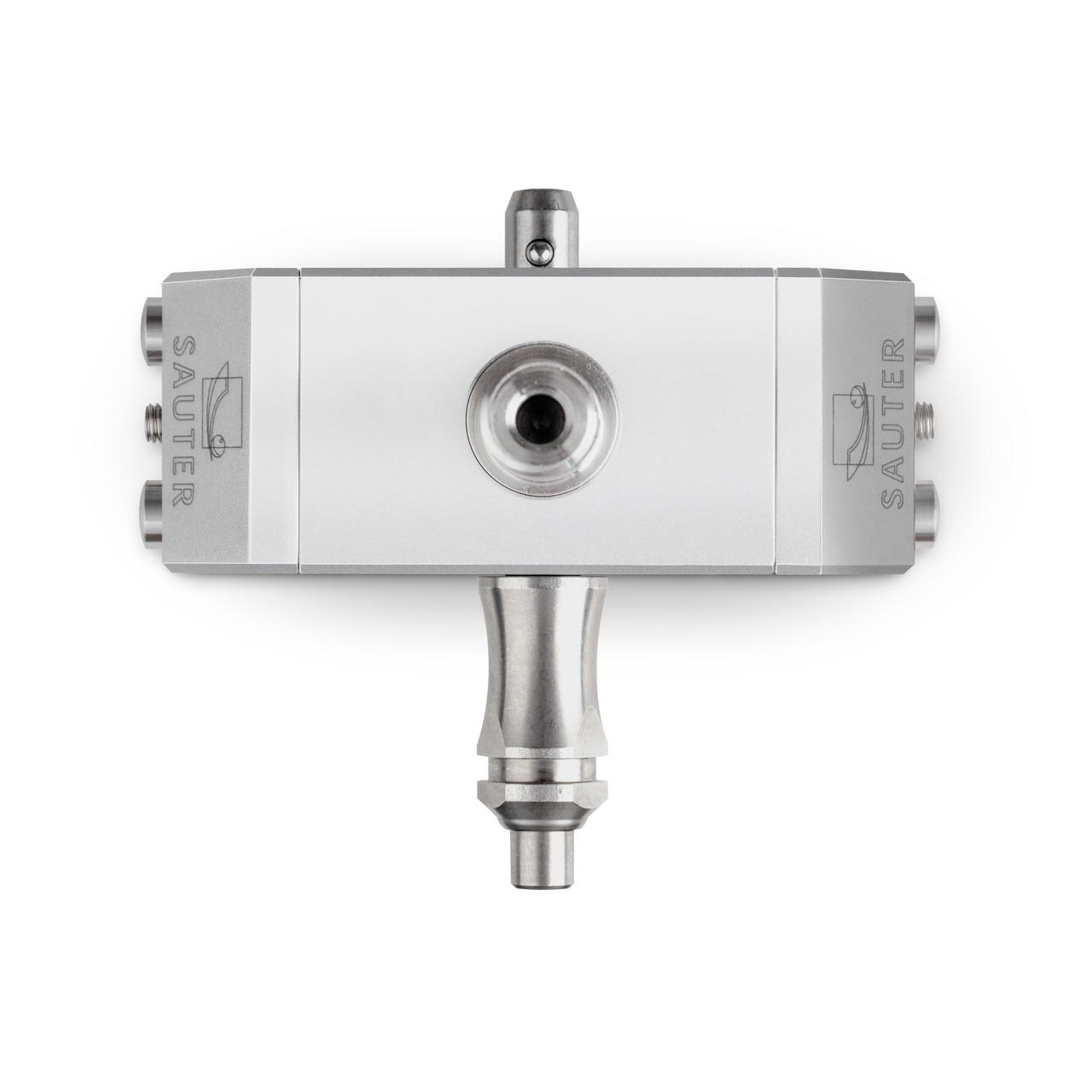

High-quality screw tension clamp in the middle force range with an enormous flexibility for a fast adaptation to a wide variety of test objects Solid version for high clamp forces Flexible clamping width (width between the jaws) from [[A]] 15-30 mm (standard) and from [[B]] 15-30 mm (in combination with the optional, wide central section: SAUTER AE 2K-A01) You can choose from many different types of jaws - Jaws with pyramid grip as standard, W¡ÁH 32¡Á20 mm- [[5]] Jaws with corrugated grip as well as custom products [[1]] The modular construction enables a quick adaptation and cleaning of the clamp [[2]] By means of the practical ball locking pin system, the clamp can be quickly adapted to ones¡® own demands, test objects, operational environment, e.g. test stand or force measuring device Can be used with all SAUTER force measuring devices or test stand systems For tension and compression testing up to 2 kN Overload protection: 150 % of [Max] Scope of supply: 1 clamp with middle section for widths from 0-15 mm, 1 adapter, 1 locking pin For dimensional drawing, see www.sauter.eu
